Creating crisp, responsive graphical user interfaces (GUIs) on microcontrollers used to mean making severe compromises. You either had to step up to power-hungry Application Processors running full Linux or settle for low-framerate, laggy display animations on standard MCUs.

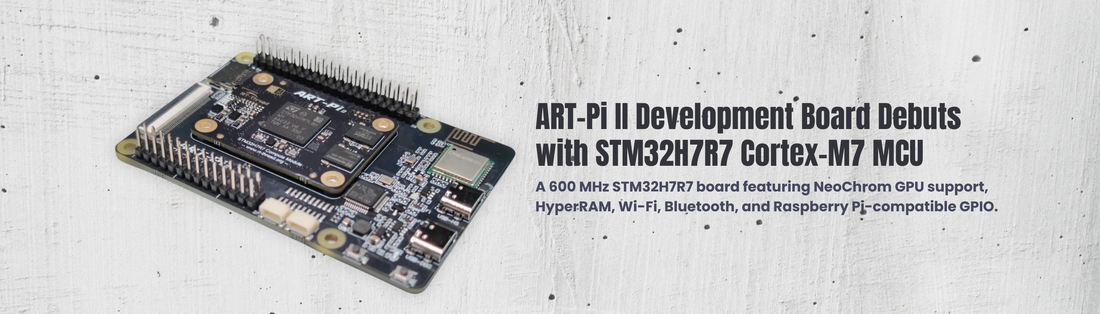

RT-Thread is officially solving that dilemma with the launch of the ART-Pi II.

Building on the massive success of the original ART-Pi, this second-generation evaluation board is engineered specifically around STMicroelectronics’ new high-performance STM32H7R7 microcontroller. With a blistering clock speed and dedicated 2.5D graphics hardware, it brings smartphone-smooth GUIs straight to embedded microcontrollers.

The Brains: 600 MHz Cortex-M7 with NeoChrom GPU

At the core of the ART-Pi II is a massive silicon upgrade designed to render complex UI assets without choking the CPU:

  • 600 MHz ARM Cortex-M7 Core: Delivers compute power for real-time control, signal processing, and IoT connectivity tasks.
  • NeoChrom 2.5D GPU: Includes ST's dedicated hardware graphics accelerator. It handles rotation, scaling, alpha blending, and texture mapping natively in hardware, freeing up CPU cycles for application logic.
  • Smart Memory Architecture: Outfitted with high-speed external PSRAM and Flash memory via Octo-SPI interfaces, ensuring smooth frame-buffering for high-resolution displays.

Rich Hardware Interfaces for GUI & IoT Prototyping

The ART-Pi II isn't just about rendering graphics; it's a fully equipped hardware playground built for real-world product prototyping:

  • Dedicated Display & Touch Interfaces: Features integrated MIPI-DSI / RGB display interfaces alongside capacitive touch connectors, making it simple to snap on high-resolution LCD panels.
  • Dual USB-C Ports: Packed with modern USB-C connectors for dedicated high-speed USB OTG data transfers and onboard ST-LINK debugging.
  • Wireless Expansion: Comes equipped with on-board Wi-Fi and Bluetooth connectivity, allowing you to build cloud-connected smart home dashboards out of the box.
  • Breadboard & Module Expandability: Retains the classic, developer-friendly header layouts to easily snap on external sensor breakout boards, CAN bus transceivers, or audio codecs.

Native RT-Thread OS Ecosystem

As expected from an RT-Thread flagship board, the software experience is deeply integrated with modern real-time operating system standards:

  • RT-Thread Smart & Studio Integration: Native support for the RT-Thread IDE and RT-Thread Studio, enabling rapid drag-and-drop UI development and modular firmware compilation.
  • LVGL & TouchGFX Ready: Fully optimized to run popular open-source and professional embedded graphics libraries like LVGL (Light and Versatile Graphics Library) and TouchGFX at high frame rates.

The Verdict: A Massive Step Forward for Embedded Displays

Whether you are designing a modern smart home thermostat, an industrial equipment interface, a medical device display, or an advanced wearable, the ART-Pi II offers an ideal evaluation hub. By pairing a 600 MHz Cortex-M7 processor with a dedicated 2.5D GPU, RT-Thread and STMicroelectronics have officially raised the standard for GUI-driven microcontroller projects.
