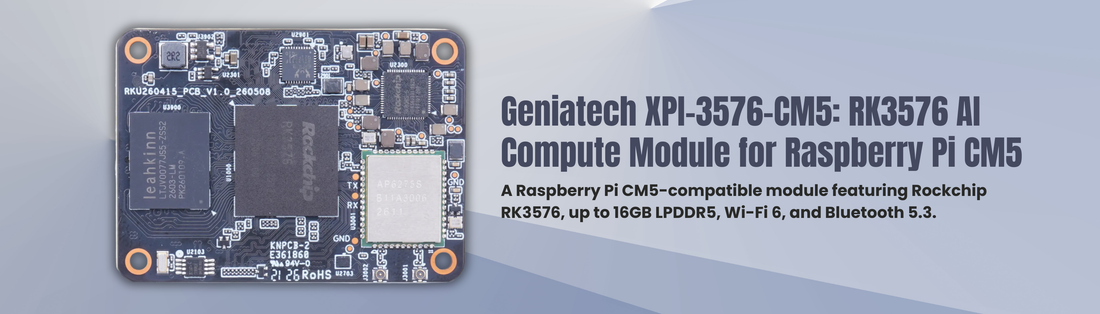

A Turbocharged Pi Alternative: Geniatech Drops the XPi-3576 CM5 Compute Module

A Turbocharged Pi Alternative: Geniatech Drops the XPi-3576 CM5 Compute Module

The Raspberry Pi Compute Module 5 (CM5) ecosystem is incredible for industrial carrier boards, edge gateways, and custom hardware. But what if your project demands heavy local AI acceleration, advanced 8K video processing, or modern dual-band wireless out of the box—without redesigning your underlying carrier board?


Geniatech is tackling that exact need with the release of the XPi-3576 CM5.

Engineered to match the physical connector pinout and form factor of the Raspberry Pi CM5, this alternative System-on-Module (SoM) drops right into existing CM5 carrier boards while upgrading the processing architecture underneath to Rockchip's high-efficiency silicon.

The Brains: Rockchip RK3576 with 6 TOPS NPU

At the core of the module sits the Rockchip RK3576, an octa-core processor built on a power-efficient 8nm process:

  • Octa-Core CPU Architecture: Combines 4x Cortex-A72 performance cores (clocked up to 2.2 GHz) with 4x Cortex-A53 efficiency cores (clocked up to 1.8 GHz) for smooth multitasking.
  • Integrated 6 TOPS NPU: Includes a triple-core Neural Processing Unit delivering up to 6 TOPS of INT8 processing power. It effortlessly handles real-time computer vision, object detection, and local AI model inference.
  • Mali-G52 GPU: Outfitted with ARM Mali-G52 MC2 graphics, bringing support for OpenGL ES 3.2, Vulkan 1.2, and OpenCL 2.0.

Multimedia Powerhouse: Native 8K & Multi-Display Support

While standard single-board modules struggle with ultra-high-definition video pipelines, the XPi-3576 CM5 treats media processing as a primary feature:

  • Hardware Video Decoding: Smoothly decodes 8K video streams at 30 fps (supporting H.265, VP9, and AVS2) alongside 4K @ 120 fps support.
  • Hardware Video Encoding: Encodes 4K video at 60 fps (H.265/H.264), making it an ideal core engine for multi-channel NVR security systems and streaming nodes.
  • Multi-Display Output: Supports simultaneous dual or triple display outputs via HDMI 2.1, DisplayPort 1.4, and MIPI DSI interfaces.

High-Speed Memory & Onboard Wi-Fi 6

Geniatech didn't cut corners on networking or bandwidth. The board comes equipped with modern wireless standards directly on the module:

  • Flexible LPDDR4x RAM: Available in 2GB, 4GB, 8GB, or 16GB configurations to match your software memory demands.
  • High-Speed Storage: Supports onboard eMMC flash storage options ranging from 16GB up to 128GB.
  • Wi-Fi 6 & Bluetooth 5.3: Features integrated dual-band Wi-Fi 6 (802.11ax) for high-throughput, low-latency wireless data transfers alongside Bluetooth 5.3 (LE).

Drop-In Compatibility for Custom Carrier Boards

The real triumph of the XPi-3576 CM5 is its hardware footprint. By leveraging high-density board-to-board connectors that mirror the Raspberry Pi CM5 footprint, developers can swap out modules to boost AI performance without re-engineering custom PCB layouts.

Supported OS options include official builds of Debian, Ubuntu, Android 14, and Linux-based build systems (Yocto/Buildroot), giving software teams full flexibility across commercial deployments.

The Verdict: Scaling Up Edge Compute

If your industrial gateways, smart signage, or robotics projects are pushing past the limits of standard Pi hardware, Geniatech's XPi-3576 CM5 provides an accessible, high-performance upgrade path without abandoning your existing carrier board investments.
