When you want to prototype a wearable sensor, a smart home remote, or a portable data logger, the biggest headache isn't the code—it’s the enclosure. Buying a dev board, soldering a battery, adding sensors, and 3D printing a case takes hours before you even get to test your proof of concept.

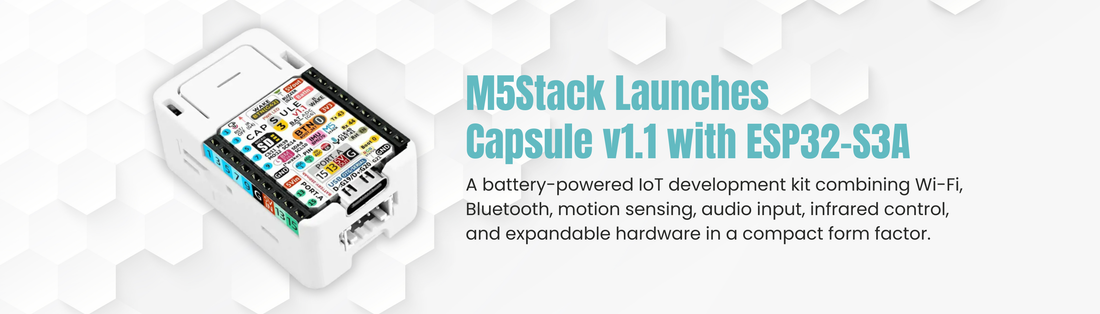

M5Stack is fixing that workflow with the official release of the Capsule Kit V1.1.

This ultra-compact, battery-powered development kit puts a highly capable ESP32-S3 processor into a rugged, capsule-shaped shell. It comes fully loaded with sensors, user inputs, and expansion ports, giving you a production-ready smart device that fits right on your keychain.

Massive Performance in a Micro Footprint

Don't let the tiny, toy-like enclosure fool you. Under the hood, the Capsule Kit V1.1 is an absolute powerhouse designed to handle edge computing, wireless networking, and light machine learning workflows.

  • The Silicon Brain: Powered by an Xtensa 32-bit dual-core ESP32-S3 processor running up to 240 MHz.
  • Wireless Muscle: Native, out-of-the-box support for both 2.4 GHz Wi-Fi and Bluetooth 5.0 (LE).
  • Storage Capabilities: Packed with 8MB of SPI flash memory to easily store local logs, sensor data, and complex UI scripts.

Loaded with Onboard Hardware

M5Stack managed to squeeze a complete sensor suite directly onto the main board, eliminating the need for messy jumper wires or external breakout modules:

  • Spatial Tracking: Features a built-in BMI270 6-axis IMU (accelerometer and gyroscope) for precise motion tracking, step counting, or gesture detection.
  • Audio Input: Integrated SPM1423 MEMS microphone for voice control, acoustic monitoring, or smart-assistant triggering.
  • Smart Home Control: Outfitted with an Infrared (IR) transmitter, allowing you to instantly clone remotes and control legacy TVs or air conditioners.
  • User Interface: Equipped with a physical, programmable button on the front and an RGB LED indicator light for instant status updates.

Plug-and-Play Expansion & Battery Power

The real magic of the Capsule Kit is its modular design. When you need to scale up your setup, you don't need a soldering iron.

  • Grove/Stemma QT Connector: Features a dedicated, 4-pin expansion port on the base. You can instantly daisy-chain hundreds of M5Stack Units or standard I2C sensors using simple plug-and-play cables.
  • Built-in Power: Houses an internal, rechargeable lithium battery, making it entirely self-contained for mobile or wearable prototyping.
  • USB-C Interface: Provides hassle-free power delivery, battery charging, and rapid firmware flashing over a single standard USB-C cable.

The Verdict: The Ultimate Hardware Shortcut

Whether you are an e-commerce brand developer prototyping a new consumer smart device, a maker building an open-source automation clicker, or an engineer deploying temporary wireless data nodes, the M5Stack Capsule Kit V1.1 removes all the physical friction. It is compact, incredibly powerful, fully enclosed, and ready to deploy straight out of the box.
