Ditch the $230 Price Tag: Turn Your M5Stack Core2 into an OpenAI Codex Micro Controller

If you’re using OpenAI’s AI coding platform, you know how game-changing dedicated physical controls can be for steering autonomous coding agents, triggering prompt actions, and tracking task statuses.

However, buying the official Work Louder Codex Micro macro pad means shelling out a steep $230.

Developer IAMLIUBO decided there had to be a better way for makers and coders. Using a clever mix of open-source firmware and smart Bluetooth trickery, they’ve transformed the popular M5Stack Core2 development kit a device that costs around $47 into a feature-complete clone of the Codex Micro controller.

How It Works: Touchscreen Emulation Over Bluetooth BLE

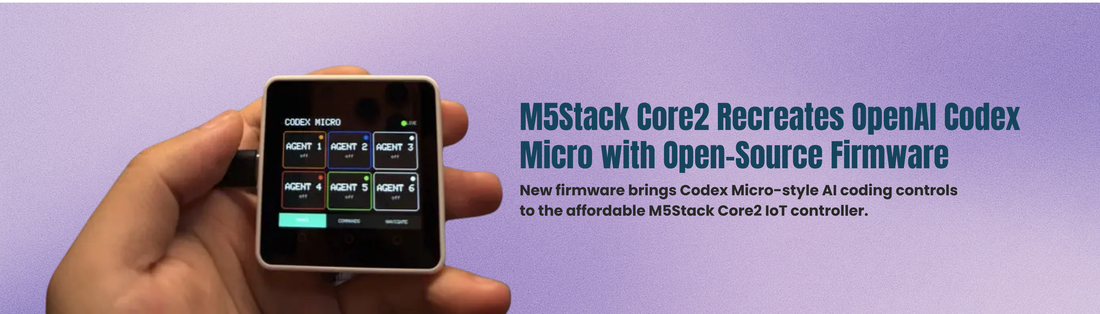

The official Codex Micro uses physical keys, dial knobs, and an analog stick to send control commands to the desktop ChatGPT application. Since the M5Stack Core2 is a sleek, buttonless unit, IAMLIUBO took a visual approach using the device's built-in 2.0-inch capacitive color touchscreen.

• On-Screen Layout: The open-source firmware renders six dedicated AI agent keys, six customizable command buttons, an analog directional joystick interface, and rotating dial actions directly onto the IPS screen.
• Vendor-Matching BLE HID: The firmware advertises the ESP32 chip as a Bluetooth Low Energy (BLE) Human Interface Device (HID). It mimics the exact vendor data structure expected by Work Louder hardware, tricking your computer into seeing an official device.
• ChatGPT Integration: When linked to the desktop ChatGPT application (macOS or Windows), the display updates in real time to mirror your active agent's task status colors, battery level, and push-to-talk voice controls.

Powered by Arduino & PlatformIO

You don't need a degree in reverse engineering to flash this firmware onto your own device. The developer built the entire code stack using accessible, industry-standard tools:

• Framework: Built using the Arduino framework inside PlatformIO, making it straightforward to audit, tweak, or compile yourself.
• Open Repository: The complete source code, flashing guide, and technical documentation are freely hosted on GitHub for the community to inspect and expand upon.

The Hardware: A $47 Workhorse

If you already have an M5Stack Core2 sitting on your desk collecting dust, this project costs you absolutely nothing. If you need to buy one, it remains one of the most cost-effective IoT development hubs on the market:

• Processing Core: Powered by the dual-core ESP32-D0WDQ6-V3 running up to 240 MHz with 16MB Flash and 8MB PSRAM.
• Interactive UI: Features a 2.0-inch IPS color touchscreen (320x240 resolution) alongside a built-in vibration motor for haptic feedback when tapping virtual buttons.
• Power Management: Includes an integrated 500mAh rechargeable battery and an AXP192 power management IC for portable desk use.

The Verdict: Open Hardware Wins Again

Whether you are looking to streamline your AI-assisted programming workflow or simply love finding clever uses for budget microcontrollers, this project highlights the magic of open-source development. By replacing a single-purpose $230 peripheral with a flexible $47 touchscreen dev board, IAMLIUBO just saved the maker community a bundle.
