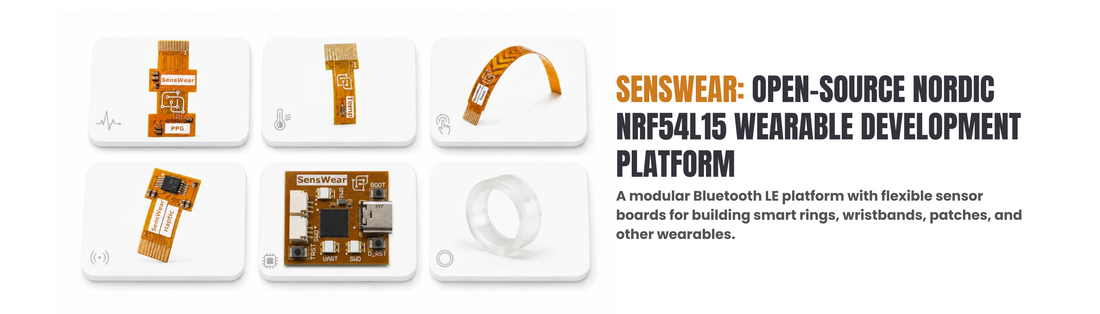

Modular Wearables Made Easy: Meet the Open-Source SensWear Platform

Modular Wearables Made Easy: Meet the Open-Source SensWear Platform

Designing custom wearable technology—whether it's a smart ring, a fitness band, or a bio-monitoring patch—presents unique engineering headaches. Squeezing microcontrollers, sensors, and battery charging circuits onto a tiny PCB requires intricate layout work before you can even test your core ideas.

The SensWear platform is here to eliminate that initial friction.

SensWear is a fully open-source, modular development platform built specifically for rapid wearable prototyping. Powered by Nordic Semiconductor’s next-generation nRF54L15 wireless chip, it combines ultra-low power consumption with a flexible, modular architecture that lets developers stack, swap, and deploy wearable sensors in minutes.

Powered by Nordic’s Next-Gen nRF54L15 Silicon

At the heart of the SensWear mainboard sits the nRF54L15 System-on-Chip (SoC), Nordic’s cutting-edge successor to the popular nRF52 series:

  • 32-bit ARM Cortex-M33 Core: Delivers high-efficiency compute power clocked at 128 MHz, giving you plenty of headroom for local signal processing and algorithm execution.
  • Bluetooth 6.0 Ready: Native support for the latest Bluetooth standards, including high-accuracy distance measuring via Bluetooth Channel Sounding.
  • Ultra-Low Power Draw: Engineered for extreme battery longevity, allowing wearable devices to run for weeks or months on tiny coin-cell or Li-Po batteries.

Modular "Snap-On" Architecture

Instead of soldering delicate jumper wires to tiny surface-mount components, SensWear uses a modular ecosystem designed specifically for human-body placement:

  • Snap-On Sensor Boards: Modular sensor breakout boards (featuring IMUs, heart-rate monitors, temperature sensors, and ambient light detectors) attach directly to the mainboard using compact, high-density connectors.
  • Ergonomic Footprint: Designed with a slim, rounded profile that fits comfortably against the skin or slips easily into 3D-printed wearable enclosures.
  • Expandable I/O: Breaks out essential GPIOs, I2C, SPI, and ADC interfaces for connecting custom flex-sensors or haptic vibration motors.

Onboard Battery Management & Power Delivery

SensWear comes fully equipped to operate as a self-contained, wire-free device straight out of the box:

  • Integrated LiPo/Li-ion Charger: Features a built-in power management IC (PMIC) that handles safe battery charging over a standard USB-C connection.
  • Ultra-Low Quiescent Current: Integrated power switches completely cut power to inactive peripheral sensors during sleep cycles to conserve energy.
  • Fuel Gauge Monitoring: Allows your firmware to report precise battery percentage readouts back to a connected smartphone app.

100% Open Source: Schematics, Code & CAD

In true maker spirit, SensWear doesn't hide behind proprietary design locks. Everything you need to take a prototype into full-scale production is freely available:

  • Open Hardware: Full KiCad PCB schematics, layout files, and Gerber exports are published for community auditing and adaptation.
  • Software SDK Support: Fully compatible with Nordic’s nRF Connect SDK and Zephyr RTOS, giving software teams a rock-solid, production-grade codebase.
  • 3D Enclosure Files: Includes downloadable STL and STEP CAD files for printable wristbands, clip-on housings, and ring mounts.

The Verdict: A Complete Wearables Sandbox

Whether you are a researcher prototyping medical-grade telemetry, a maker building custom sports hardware, or a startup testing an innovative biometric product, SensWear provides a direct shortcut to a working prototype. It strips away the hardware layout headaches and lets you focus on what really matters: building great wearable software.
