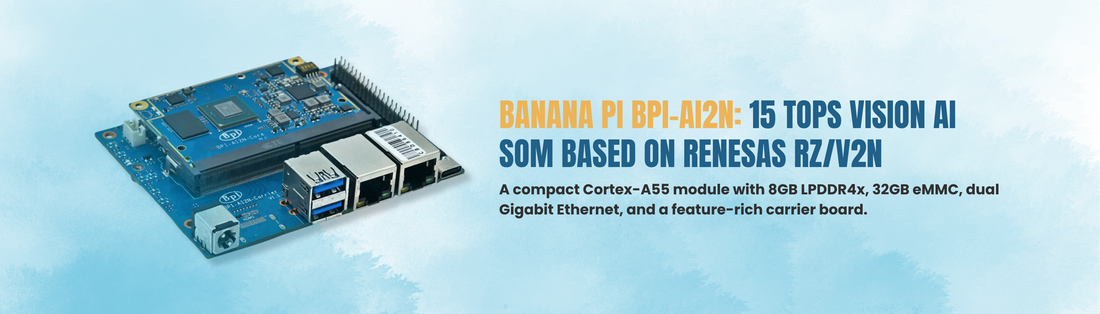

15 TOPS of Vision AI Power: Banana Pi Drops the Renesas-Powered BPI-AI2N SoM

15 TOPS of Vision AI Power: Banana Pi Drops the Renesas-Powered BPI-AI2N SoM

Deploying high-speed computer vision models at the edge often forces developers into expensive, proprietary GPU ecosystems. While compact SoMs are everywhere, finding open-source hardware specifically tuned for low-power vision pipelines and multi-camera inferencing remains a tough challenge.

Banana Pi is shaking up the edge AI landscape with the launch of the BPI-AI2N.

Built around the high-efficiency Renesas RZ/V2N microprocessor, this open-source System-on-Module (SoM) and companion carrier board deliver dedicated hardware AI acceleration, dual-camera ingestion, and enterprise-grade networking in an ultra-compact footprint.

Silicon Muscle: Quad-Core Cortex-A55 with 15 TOPS DRP-AI3

At the core of the BPI-AI2N module is Renesas’ specialized vision AI silicon:

  • Quad-Core CPU: Powered by four 64-bit Arm Cortex-A55 cores clocked up to 1.8 GHz, paired with an Arm Mali-G31 GPU for basic graphical rendering.
  • 15 TOPS DRP-AI3 NPU: Features Renesas’ proprietary Dynamically Reconfigurable Processor (DRP-AI3) accelerator, pushing up to 15 TOPS of sparse AI performance for real-time object detection, tracking, and image segmentation.
  • Robust Memory & Storage: Packed with 8GB LPDDR4x RAM, 32GB eMMC flash storage, and 64MB QSPI flash to handle heavy model weights with ease.

Compact SO-DIMM Form Factor & Carrier Board

While the BPI-AI2N module visually resembles standard Jetson Nano/NX modules, it uses a custom 260-pin SO-DIMM interface (45 x 69.6 mm) paired with Banana Pi’s custom carrier board:

  • Dual Gigabit Ethernet: Twin GbE RJ45 ports provide plenty of bandwidth for multiple IP camera streams or industrial network isolation.
  • High-Speed USB: Equipped with dual USB 3.0 Type-A ports alongside a dedicated USB-C interface for power delivery and serial debugging.
  • Camera & Display Connectivity: Outfitted with dual MIPI CSI camera inputs and a MIPI DSI interface (with an optional MIPI-to-HDMI adapter board supporting 1080p output).
  • Future-Proof Carrier: The base carrier is also designed to support the upcoming high-end BPI-AI2H module, which will deliver up to 80 TOPS using the flagship Renesas RZ/V2H processor.

Industrial-Grade Reliability & Open Software

Banana Pi built the BPI-AI2N to survive well beyond the maker workbench:

  • Wide Thermal Tolerance: Rated for harsh industrial operating environments from -40°C to +85°C.
  • 40-Pin GPIO Expansion: Retains a standard 40-pin header exposing 28x GPIOs, UART, I2C, SPI, and PWM lines.
  • Rich Software Ecosystem: Supports official Linux (Debian) OS images, Yocto build tools, and Adafruit Blinka/CircuitPython layers for rapid sensor scripting.

The Verdict: A Compelling Vision AI Workhorse

Whether you are designing automated quality inspection rigs, smart retail analytics hubs, or autonomous robotic vision systems, the Banana Pi BPI-AI2N is an impressive piece of hardware. By pairing Renesas’ high-efficiency DRP-AI3 accelerator with an open, accessible developer platform, it offers an exciting, high-throughput alternative for edge AI engineers.
