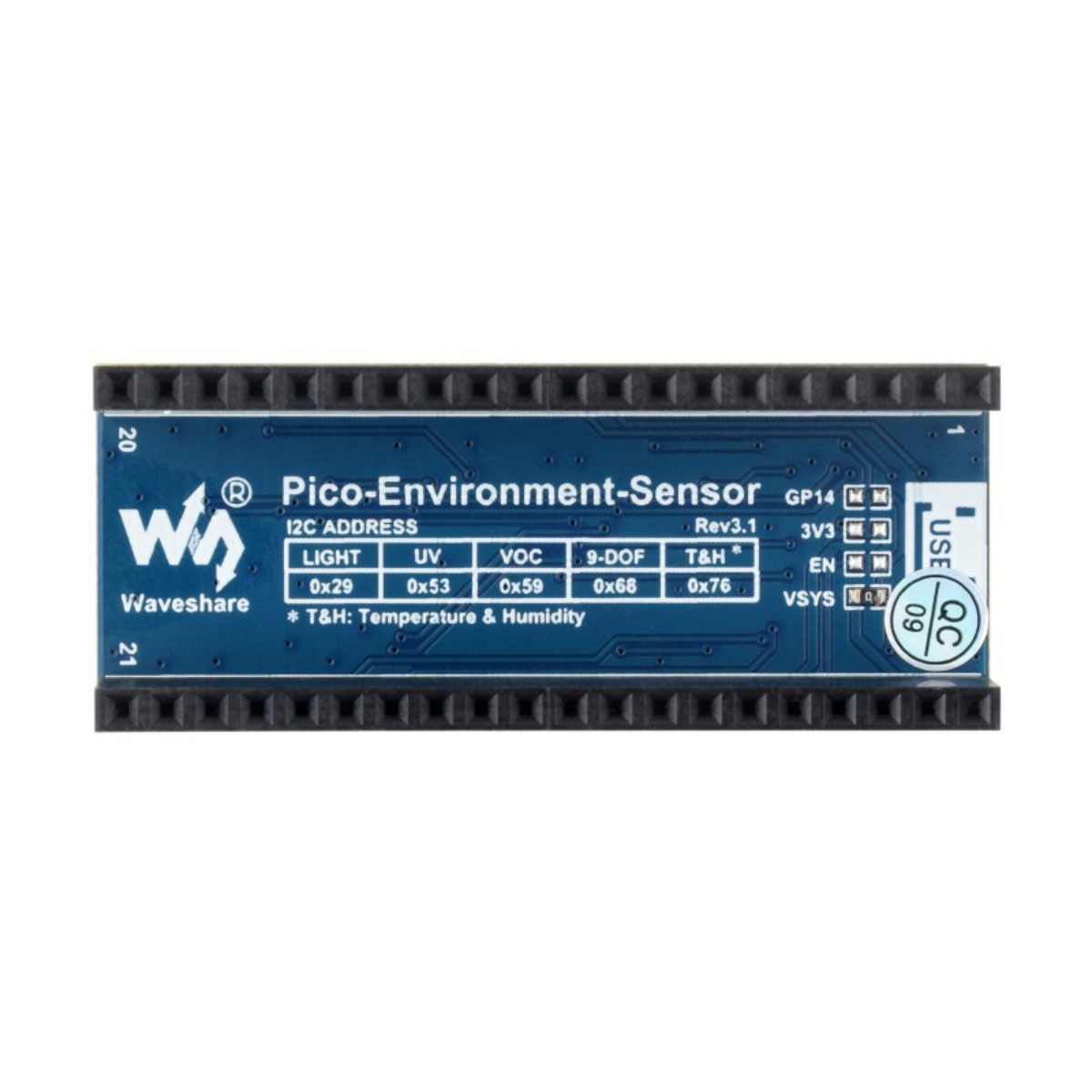

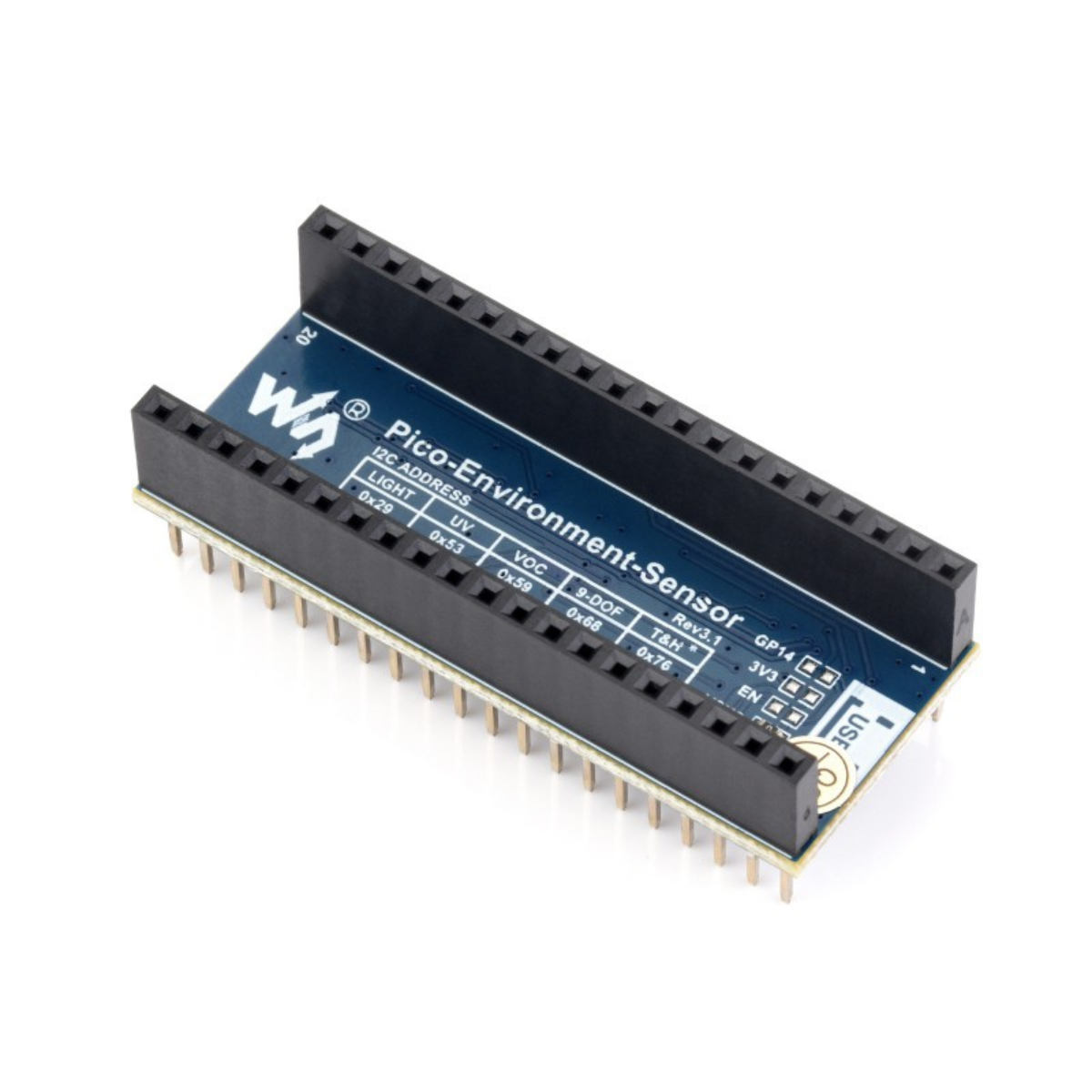

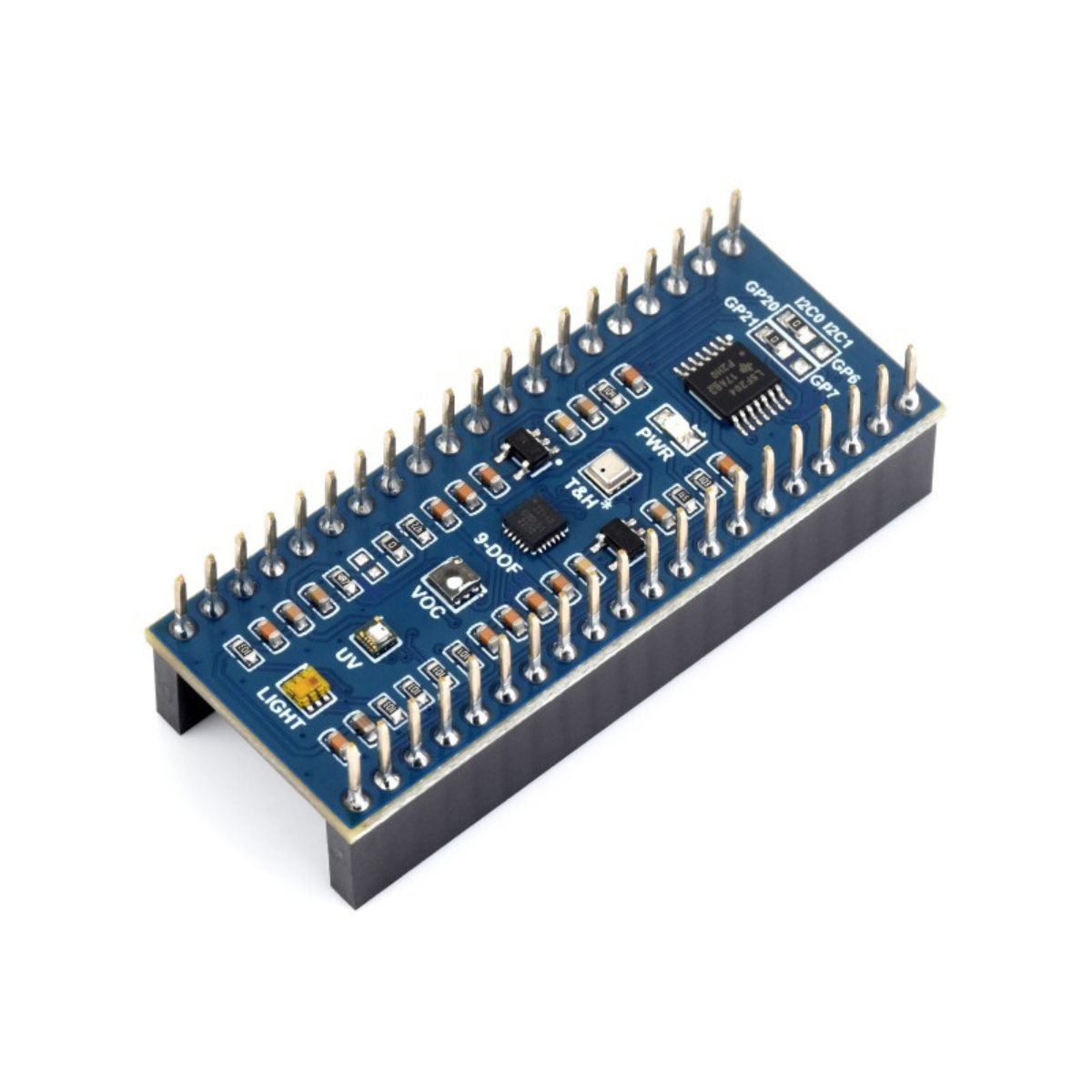

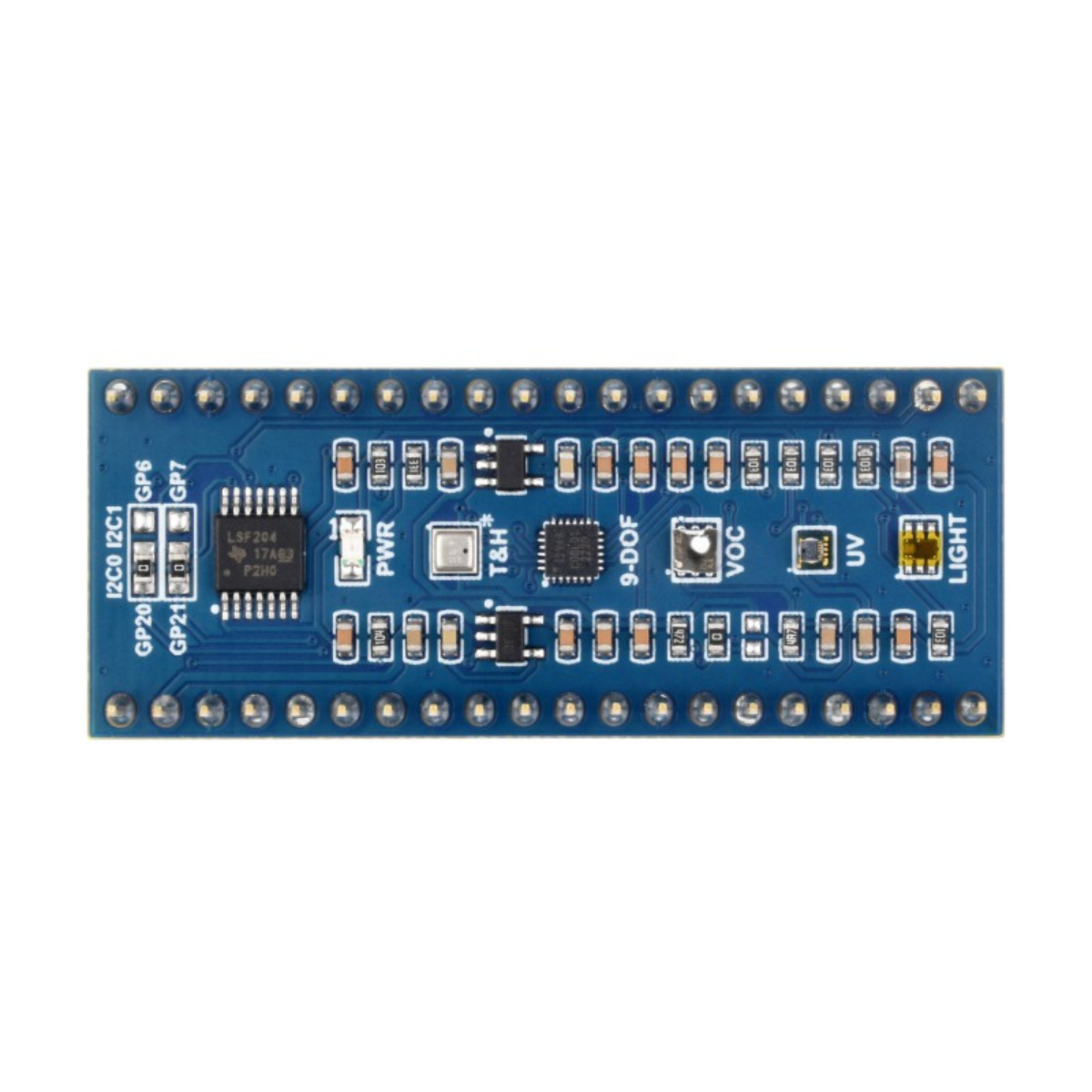

Environment Sensor Module for Raspberry Pi Pico (Multi-Sensor Weather & Motion Expansion Board)

Turn your Raspberry Pi Pico into a full-fledged environment monitoring station with the Pico Environment Sensor Module. Designed to stack directly onto your Pico, this all-in-one expansion board integrates sensors for temperature, humidity, barometric pressure, ambient light, UV light, altitude, and 9-axis motion detection. Communicating through a single I2C bus, it is the perfect solution for IoT weather stations, motion tracking, and environmental data logging projects.

Key Features & Highlights:

• All-in-One Multi-Sensor Array: Consolidates environmental weather tracking and motion sensing into a single compact expansion board.
• BME280 Weather Sensor: Accurately measures ambient temperature, relative humidity, and barometric pressure with high-precision digital output.
• TSL25911FN Light Sensor: Measures ambient light intensity (lux) with a wide dynamic range, suitable for both dark environments and direct sunlight.
• LTR390-UV-1 UV Sensor: Detects ultraviolet light radiation and provides direct ALS/UV index readings.
• ICM20948 9-Axis Motion IMU: Combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer for precise orientation and motion tracking.
• Onboard SGP40 VOC Sensor (Selective/Optional Revision): Measures VOC gas changes for calculating indoor air quality indices.
• Direct Pico Stacking Header: Features female header pins for plug-and-play attachment to any standard Raspberry Pi Pico or Pico W board without soldering cables.
• I2C Bus Communication: All sensors operate over the I2C bus, leaving maximum GPIO pins open on your Raspberry Pi Pico for other peripherals.

Technical Specifications:

Box Content:

• 1 x Environment Sensor Expansion Module for Raspberry Pi Pico
