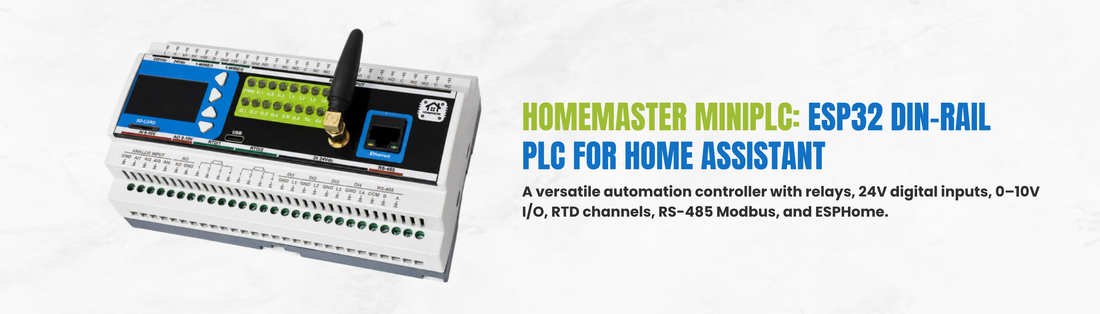

Professional Automation for Your Breaker Panel: Meet the HomeMaster MiniPLC

Professional Automation for Your Breaker Panel: Meet the HomeMaster MiniPLC

If you've ever tried wiring multiple wireless smart plugs, custom ESP32 breakout boards, and loose relay modules inside your electrical distribution cabinet, you know it turns into an unsafe, tangled mess of wires.

Commercial programmable logic controllers (PLCs) solve the organization problem, but they are expensive, rely on clunky proprietary software, and don't integrate smoothly into modern smart homes.

Enter the HomeMaster MiniPLC.

Engineered specifically to bridge the gap between industrial electrical cabinets and open-source smart homes, this compact DIN-rail controller puts the versatile ESP32 microcontroller into a standard modular enclosure—delivering a safe, robust, and clean installation that talks natively to Home Assistant.

Clean DIN-Rail Architecture for Real Electrical Panels

The defining advantage of the HomeMaster MiniPLC is its physical design. It looks and installs just like standard circuit breakers in your panel:

  • Standard Modular Footprint: Snaps securely onto any standard 35mm DIN rail inside residential or commercial electrical cabinets.
  • Screw Terminal Connections: Uses heavy-duty, industrial-grade screw terminals to ensure thick electrical wiring stays clamped tight and vibration-free.
  • Status LEDs at a Glance: Features dedicated LED indicators for power, network activity, relay states, and digital inputs for effortless visual troubleshooting.

Heavy-Duty Control: Relays, Inputs & RS-485

Underneath its certified housing, the MiniPLC provides all the hardware muscle needed to automate high-voltage and low-voltage circuits safely:

  • Onboard Power Relays: Outfitted with robust mechanical relays to switch lighting circuits, heating elements, irrigation solenoid valves, or roller shutters.
  • Opto-Isolated Digital Inputs: Safely monitor physical wall switches, door/window contacts, or external sensor signals without exposing the ESP32 chip to dangerous voltage spikes.
  • Industrial RS-485 Interface: Includes built-in RS-485 with Modbus RTU protocol support, making it simple to pull real-time data from smart energy meters, solar inverters, or HVAC chillers.
  • Native ESPHome & Home Assistant Integration

You don't need to write complicated C++ code or mess with ladder logic software to get your automations running:

  • 100% ESPHome Compatible: Comes ready to flash with ESPHome, allowing you to configure inputs, outputs, and safety interlocks using clean YAML configuration files.
  • Instant Home Assistant Discovery: Once powered and connected via Wi-Fi or Ethernet, all relay switches and input sensors auto-populate inside your Home Assistant dashboard within seconds.
  • Local-First Reliability: Operates completely on your local network with zero cloud dependence. If your internet goes down, all local switch logic and automated schedules keep running smoothly.

The Verdict: A Clean Upgrade for Serious Smart Homes

Whether you are wiring a brand-new home automation build, retrofitting an electrical panel, or setting up a dedicated holiday home controller, the HomeMaster MiniPLC hits the sweet spot. It takes the flexibility and affordability of the ESP32 ecosystem and houses it in a professional, DIN-rail format ready for any electrical panel.
