Whether you are automating a commercial greenhouse, wiring an industrial control cabinet, or building a high-reliability smart home hub, one challenge always pops up: cable management. Hooking up separate relay modules, optocoupled sensor boards, and power supplies to your microcontroller turns control boxes into an unmaintainable maze of jumper wires.

Enter IoTextra with their newly launched family of modular automation expansion boards.

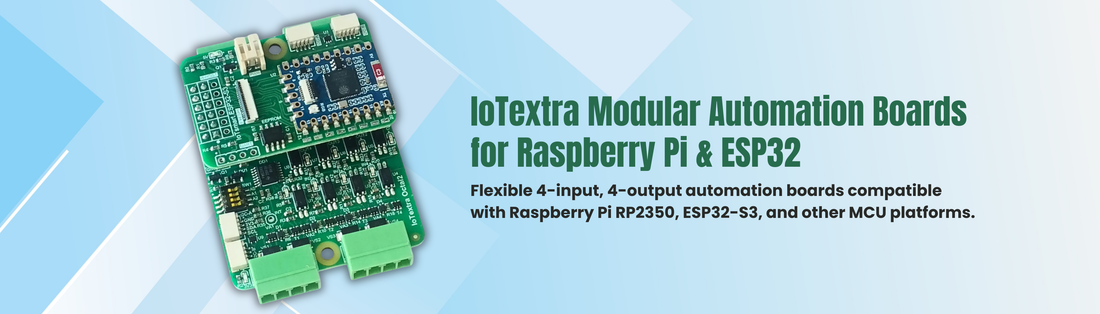

Designed specifically around a 4-Input / 4-Output architecture, these stackable, industrial-friendly expansion boards act as a clean, reliable interface between delicate 3.3V/5V logic boards—like the Raspberry Pi or ESP32—and real-world, high-voltage equipment.

The Architecture: 4 Inputs + 4 Outputs

Instead of overwhelming you with overly complex pinouts, IoTextra focused on a balanced, highly practical layout for standard industrial control loops:

  • 4 Optocoupled Inputs: Safely sense external signals from door switches, water level float sensors, or 12V/24V industrial switches. The optical isolation prevents high-voltage noise or voltage spikes from frying your host board.
  • 4 Heavy-Duty Relays: Built-in mechanical relays allow you to safely switch AC or DC loads (such as solenoid valves, water pumps, lighting circuits, or small motors) directly.
  • Status LEDs at a Glance: Every single input and output channel includes its own dedicated LED indicator light, giving you instant visual feedback on signal activity during troubleshooting.

Stackable & Cross-Platform Compatibility

The defining feature of the IoTextra lineup is its modularity. You aren't locked into a single microcontroller family or stuck with a rigid board size.

  • Raspberry Pi & ESP32 Ready: The carrier interface is designed to pair directly with standard Raspberry Pi 40-pin GPIO layouts as well as popular ESP32 development modules (including ESP32-WROOM and ESP-S3 variants).
  • Daisy-Chain Expansion: Thanks to stackable header designs and addressable communication lines (like I2C/SPI), you can chain multiple IoTextra boards together on a single controller to expand your I/O capacity up to 16, 32, or more channels.
  • Industrial Terminal Blocks: Features heavy-duty screw terminal connectors across all I/O channels, ensuring thick field wiring stays firmly clamped even in high-vibration environments.

Industrial Power Management

You don't need a flimsy USB adapter to run your controller on the factory floor.

IoTextra boards integrate a wide-input DC power supply stage (typically accepting 9V to 36V DC). This allows the board to draw power directly from standard 12V or 24V industrial power supplies while stepping down clean, regulated voltage to power both the onboard relays and the attached Raspberry Pi or ESP32 host module simultaneously.

The Verdict: A Clean Upgrade for Custom Automation

Whether you are an automation engineer deploying field-ready telemetry units, a maker building custom HVAC controls, or an e-commerce brand looking for a solid hardware base to build an OEM controller around, the IoTextra modular board family eliminates hardware headaches. It wraps flexible, multi-platform compute in an industrial-grade shell that is ready to deploy.
