The Ultimate IoT Swiss Army Knife: WisGate Connect RAK7392 Router Drops

The Ultimate IoT Swiss Army Knife: WisGate Connect RAK7392 Router Drops

Deploying smart agriculture, industrial monitoring, or city-wide LoRaWAN networks often turns into a messy game of hardware assembly. You end up combining a single-board computer for local logic, a separate network router for backhaul, and external gateway concentrators to talk to your wireless nodes.

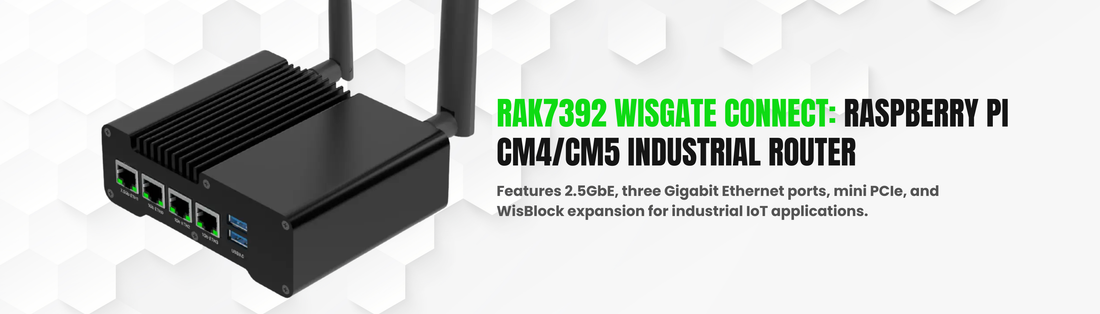

RAKwireless is streamlining that entire architecture with the launch of the WisGate Connect Router RAK7392.

Built around the modular power of the Raspberry Pi Compute Module 4 (CM4)—with drop-in support for the newer Compute Module 5 (CM5)—this industrial gateway acts as an all-in-one edge compute hub, network router, and multi-protocol IoT base station.

Heavy-Duty Compute & High-Speed Networking

At the core of the RAK7392 sits a Raspberry Pi Compute Module socket, giving developers immediate access to the entire Raspberry Pi OS and Linux software ecosystem:

  • Flexible Compute Engine: Choose between a wide range of Pi CM4 or high-performance CM5 modules depending on your processing needs.
  • 2.5GbE High-Speed Networking: Equipped with a blazing-fast 2.5 Gigabit Ethernet port alongside standard Gigabit lines, guaranteeing high-bandwidth data transfers for demanding edge-AI models or heavy sensor logs.
  • Dual SIM / Cellular Backhaul: Features integrated cellular support with dual SIM slots, allowing for automatic failover to 4G LTE or 5G networks if wired ethernet goes down in the field.

Unrivaled Modular Expansion: Mini PCIe + WisBlock

The defining superpower of the WisGate Connect RAK7392 is its modularity. You aren't stuck with a fixed hardware layout; you can tailor the internal radios to match your specific deployment:

  • Multiple Mini PCIe Slots: Easily plug in high-power multi-channel LoRaWAN concentrator cards (like RAK’s WisLink modules), Wi-Fi 6 cards, or cellular modems.
  • WisBlock Sensor Expansion: Integrates native WisBlock slots, allowing you to snap on compact hardware modules to add local environmental sensors, GPS/GNSS tracking, or custom IO interfaces without soldering.
  • Industrial Bus Connectivity: Exposes standard RS485 and CAN Bus interfaces to poll data straight from legacy factory PLCs, Modbus energy meters, or vehicle systems.

Industrial Hardening for Harsh Environments

Deploying high-stakes edge infrastructure means building hardware that can survive where consumer routers fail:

  • Wide DC Power Input: Features an industrial power supply stage accepting 9V to 36V DC via secure screw terminals, plus support for Power over Ethernet (PoE).
  • Ruggedized Enclosure: Housed in a heavy-duty, passive-cooling metal chassis equipped with external N-type or SMA antenna connectors for long-range wireless coverage.
  • Open Software Ecosystem: Runs standard Linux-based firmware, enabling smooth deployment of Docker containers, Node-RED workflows, MQTT brokers, and ChirpStack LoRaWAN network servers locally.

The Verdict: A Complete Edge IoT Gateway

Whether you are an automation engineer deploying a smart city sensor grid, an industrial IoT developer building remote agricultural monitoring stations, or a homelab enthusiast looking for a bulletproof edge router, the RAK7392 hits the sweet spot. It takes the versatility of the Raspberry Pi CM4/CM5 platform and wraps it in an industrial, modular shell ready for any network protocol you throw at it.
